5+5T Monorail Crane

06 02,2018Posted in Delivery

  • Model: 5+5T Monorail crane with double brakes
  • Capacity: 5+5 t
  • Lifting height: 12m
  • Lifting speed: 1.11-8 m/min (frequency control)
  • Hoist traveling speed: 6.6/20 m/min (dual speed)
  • Lifting motor power: 7.5 kw
  • CT motor power:0.27/0.8kw
  • Motor protection grade: IP55
  • Duty group: M5
  • Insulation grade: H grade
  • Control mode: Remote control
  • Working voltage: AC 380V 60HZ 3Ph
  • Atmosphere – Galvanizing plant
  • Max ambient temperature: 55 deg C.
  • QTY: 3 Sets

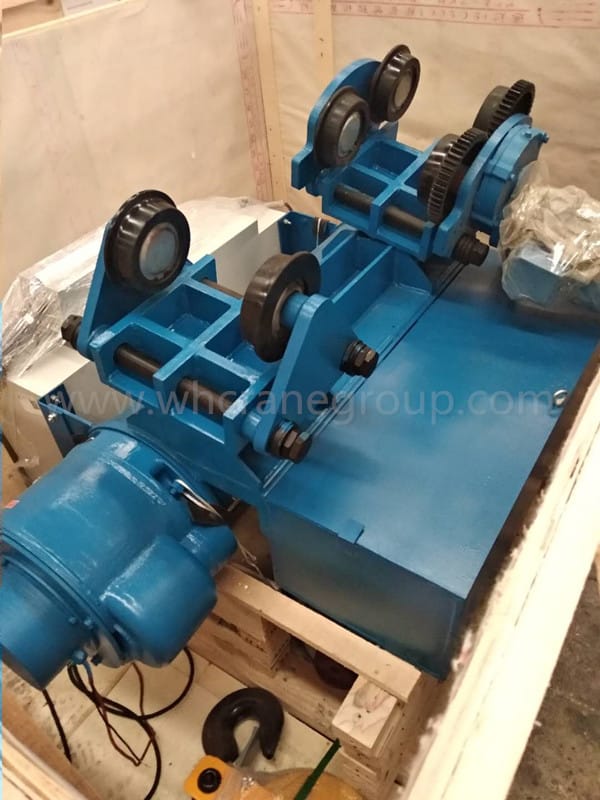

This crane is to replace the existing ones, they have I beam and long traveling electrics, so we just need to provide the electric hoist is ok. It's worked at galvanizing plant, which require very high configuration, and this hoist is not common ones, the rope direction is parallel to the hoist drum, which is special designed, we have produced many this kind products to galvanizing plant, so we have try our best to meet customer requirement, all the material used is the best.

It took about 2 months to finish the order. The customer is very satisfied with our product quality.

With 19 years export experience, we have served over 106 countries around the world, we provide the professional crane solution, welcome contact us!
