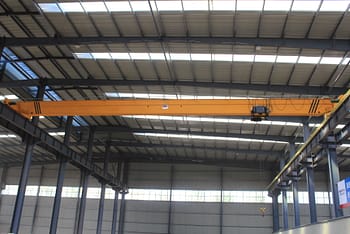

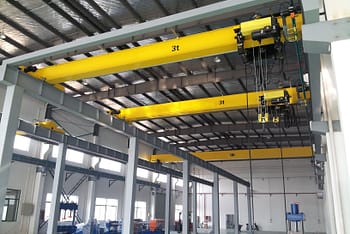

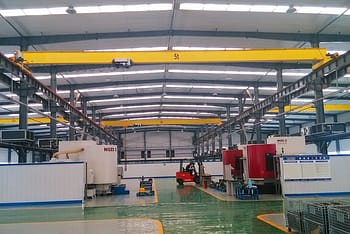

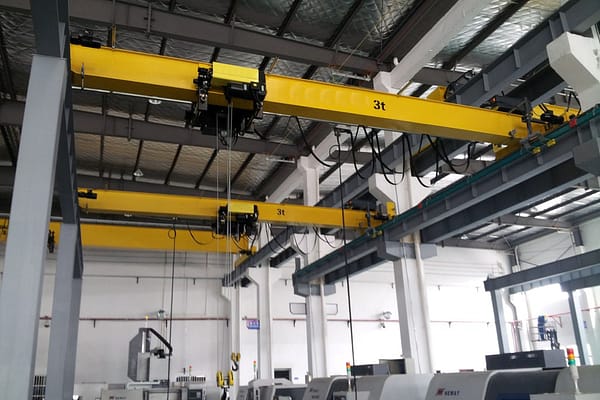

European Type Single Girder Overhead Crane

Category: European Overhead Crane

Application: European type electric single girder overhead crane is developed by our company with an advanced level of single girder overhead crane in the world. The product is technologically advanced and designed in accordance with the international standards: DIN(Germany, FEM(Europe),ISO(International),with the advantages of strong rigidity, light dead weight, outstanding structural design and so on, can effectively save the plant space and investment costs, walking structure is unique, is your best choice.

This product is used with ND type electric wire rope hoist, rated lifting weight is 3.2t~16t, 3.2t~16t, widely used in machinery manufacturing, metallurgy, petroleum, petrochemical , port, railway, civil aviation, electric power, food, paper, building materials, electronics and other industries workshops, warehouses and other material handling occasions. Especially suitable for the occasions of precise positioning of material handling and precision assembly of large parts, working environment temperature is -25-40℃.

European Type Single Girder Overhead Crane

Product introduction

European Model single girder bridge crane technology is advanced, it has a computer optimized design of box-shaped beam as a staple, geometric design outstanding, great rigidity, light deadweight, crane track loading reduced and cost-effective. Using a highly flexible flat cable to supply the power to the trolley, and with grounding protection function push button can be connected with the trolley, also can alone move on the main beam.

  • Max. lifting capacity: 16T;
  • European type low-headroom design----light dead weight, energy saving and environmental protection, and make full use of the effective space of the plant for the customers;
  • Box beam structure----small deformation, compact structure and excellent performance;
  • Advanced technology protection--- Automatic welding, Non-destructive testing;
  • Safe and comfortable control--- Crane adopts International renowned brands three-in-one driving, Schneider frequency control, running fast and smooth. Lifting frequency or double hoist operation also can be configured according to customer's requirement;
  • Crane appearance is beautiful, strong anti-corrosion---- Treatment of rust shot blasting, elimination of welding stress, long-life using of epoxy zinc-rich paint.

Features

FEM/DIN STANDARDS:
  • DIN(Deutsches Institut Fur Normung)
  • FEM(European Association Of Standard Material Handling)
LIGHTWEIGHT DESIGN:
  • Height: Crane height reduced by 20%~25% than traditional crane;
  • Dead weight: Deadweight reduced by 20~30%;
  • Structure: Light structure could reduce plant construction costs;
  • Size: Small limit size increase the crane operating area;
  • Wheel Pressure: Largest wheel pressure reduced by 15%~20%;
MODULAR DESIGN:
  • Crane parts designed into a series of standard module forming very rich product portfolio;
  • Standardized module production to ensure product quality stability, shorten the delivery cycle;
  • Adopting detachable connection mode between modules, convenient transportation& installation;

Technical Detail

Rope guide

Rope guide

ription

main beam

main beam

ription

t European type electric hoist

European type electric hoist

ription

Schneider electrics

Schneider electrics

ription

End beam

End beam

ription

Remote Control

Remote Control

ription

Parameters


Capacity(t)Span(m)Lifting height(m)Duty groupLifting speed(m/min)Hoist traveling speed(m/min)Crane traveling speed(m/min)Rec rail model
17.5~25.56~12A50.8/52-203-30120a~145c
26~12122a~145c
3.26~12132a~145c
56~12132a~145c
106~12140a~163c

Services We Offer

Product Inspections

We will provide some free testing and reporting, if you need a third party test report, please inform in advance, and the buyer to pay the relevant costs.

Packing

Unless otherwise provided, Our Company will comply only with its minimum packing standards for the method of transportation selected. The cost of all special packing, loading or bracing requested by Buyer will be paid for by Buyer.

Transportation

We have professional and efficient transport team. Transport to custo-mer specified port and ship on time. Unless otherwise provided, Our Company shall use its judg-ment in determining carrier and routing.

Installation

Provide installation files , technical data , videos , drawing etc. Have a professional team of engineers, engineers available to service machinery overseas.

After-sale services

Guarantee the machine could meet production technical standard and performance requirements indi-cated in the contract. Rich spare parts and Professional main-tenance team, technical support team to communicate in time.
