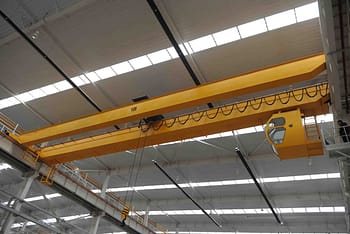

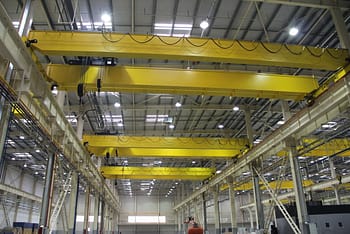

European Type Double Girder Overhead Crane

Category: European Overhead Crane

Application: European type electric double girder overhead crane is developed by our company with an advanced level of double girder overhead crane in the world. The product is technologically advanced and designed in accordance with the international standards: DIN(Germany, FEM(Europe),ISO(International),with the advantages of strong rigidity, light dead weight, outstanding structural design and so on, can effectively save the plant space and investment costs, walking structure is unique, which is your best choice.

This product is used with European type electric wire rope hoist, widely used in machinery manufacturing, metallurgy, petroleum, petrochemical, port, railway, civil aviation, electric power, food, paper, building materials, electronics and other industries workshops, warehouses and other material handling occasions. Especially suitable for the occasions of precise positioning of material handling and precision assembly of large parts, working environment temperature is -25-40℃.

European Type Double Girder Overhead Crane

Product introduction

NLH Model electric double girder overhead crane is designed and manufactured according to European FEM advanced standards. The overall technology level reaches international advanced domestic leading level. Crane steel structure design is reasonable, optimized structure, in line with regulations and standards, meet the requirement of strength, rigidity, and stability. During the design, take full account of the scene working environment; Steel structure design also considers the convenience and the possibility of manufacturing, inspection, transportation, installation, and maintenance. Under the conditions of meeting the needs and existing norms and standards, through the limited edge analysis and other optimization designs means to minimize the weight of steel structure. Hoist trolley uses ND model electric wire rope hoist trolley, rated lifting capacity is 3.2~80t.

  • With Lightweight, small wheel pressure, small bounded size, reliable performance, convenient operation, it's the first chosen machines in various material handling places.
  • Small wheel pressure, small bounded size, could reduce early stage engineering investment cost for the plant, also could save some costs for lighting, heating and other facilities.
  • Reliable product performance, durable, so that could lower the products additional costs in the post-use process, on the one hand, using high quality and high-performance of components making maintenance, repair workload reduction; on the other hand, lower the whole machine's energy consumption, also make its usage cost saved.

Features

  • FEM/DIN Standard Double Girder Overhead Crane:
    • Design and fabricate according to FEM/DIN standard;
    • Light duty & modular design;
    • Advanced fabricated technology;
    • High security;
    • High reliability;
    • Low-energy and maintenance-free;
    • Intelligential;
  • The overall height of the crane can be lower 20%~25% of the tradition crane;
  • The dead load reduced by 20%~30%;
  • Structure: With the lightness structure it can cut the construction costs;
  • Dimension: The small limit dimension can increase the working area;
  • Wheel pressure: The dead load reduced by 20%~30%;

Technical Detail

European Electric Hoist Trolley

European Electric Hoist Trolley

ription

End Carriages

End Carriages

ription

Electrics

Electrics

ription

DSC

End Girders with Traveling Motor

ription

Power supply system

Power supply system

ription

Double Main Beam with Hoist Trolley

Double Main Beam with Hoist Trolley

ription

Parameters


Capacity(t)Span(m)Lifting height(m)Duty groupLifting speed(m/min)Trolley speed(m/min)Crane traveling speed m/min
510.5~31.56~12A50.8/52-203-30
100.8/5
160.66/4
200.53/3.4
320.8/3.3
500.53/3.2

Services We Offer

Product Inspections

We will provide some free testing and reporting, if you need a third party test report, please inform in advance, and the buyer to pay the relevant costs.

Packing

Unless otherwise provided, Our Company will comply only with its minimum packing standards for the method of transportation selected. The cost of all special packing, loading or bracing requested by Buyer will be paid for by Buyer.

Transportation

We have professional and efficient transport team. Transport to custo-mer specified port and ship on time. Unless otherwise provided, Our Company shall use its judg-ment in determining carrier and routing.

Installation

Provide installation files , technical data , videos , drawing etc. Have a professional team of engineers, engineers available to service machinery overseas.

After-sale services

Guarantee the machine could meet production technical standard and performance requirements indi-cated in the contract. Rich spare parts and Professional main-tenance team, technical support team to communicate in time.
