Single Girder Gantry Cranes

Category: General Purpose Gantry Crane

Application: MH model single girder gantry cranes are a kind of outdoor cranes equipped with CD/MD type, low headroom electric hoists and widely used indoor and outdoor such as workshop, warehouse, store yard, railway and so on.

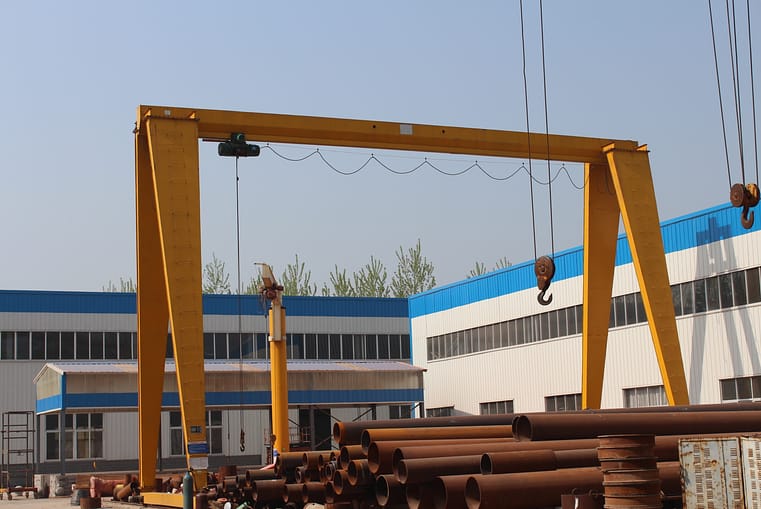

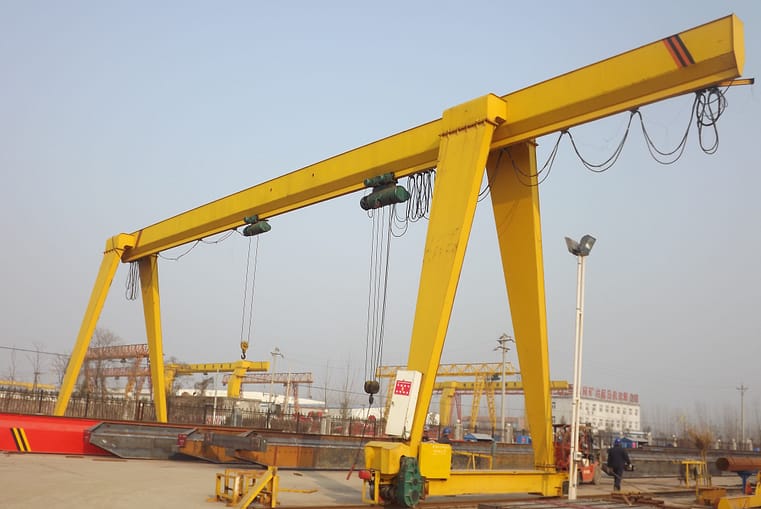

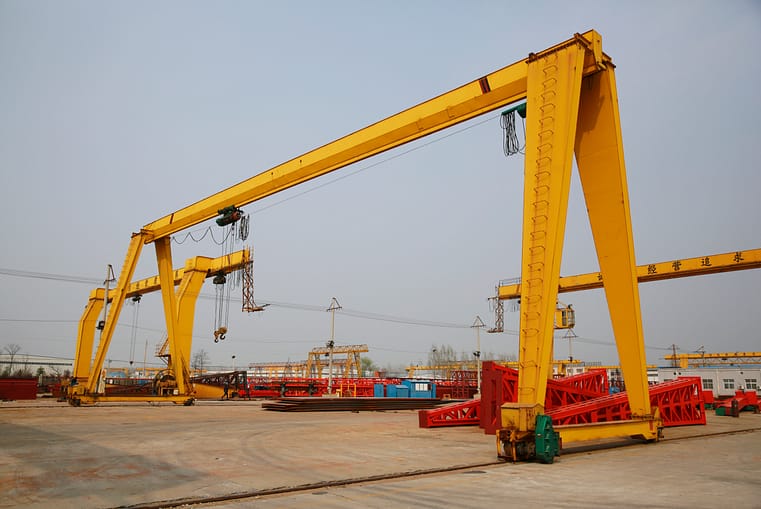

MH Type Electric Hoist Single Girder Gantry Crane

Product introduction

Single girder gantry cranes are composed of the main beam, support legs, ground beam and crane traveling mechanism.

About the main beam and support leg, there are two types: box type and truss type, box type is good techniques and easy fabrication, truss type is light in dead weight and strong in wind resistance. The complete machine features light dead weight, simple structure and easy installation and maintenance and widely used.

If you will use it in the environment with inflammable, explosive and corrosive gas, please let me know, we will equip the crane with corresponding measures. There are three control ways for you chosen: ground handle, wireless remote control, and cab.


  • Reasonable structure and favorable performance.
  • Smooth starting and stopping.
  • Safe and reliable traveling, long life.
  • Low noise, commodious cabin with a good view.
  • Easy installation and convenient maintenance.
  • Excellent exchangeability for parts and components.
  • Crane drive: IP54 or IP44, level F insulation.

Technical Detail

Ground Beam With Soft Start Motor

Ground Beam With Soft Start Motor


Electric Hoist Lifting mechanism

Electric Hoist--Lifting mechanism


Crane Traveling Limit

Crane Traveling Limit


Cable Drum Crane power supply system

Cable Drum--Crane power supply system



Capacity T 3 5 10 16 20
Span m 12 16 20 24 12 16 20 24 30 12 16 20 24 30 12 16 20 24 30 12 16 20 24 30
Lifting height m 6/9 6/9 9 6/9 9 6/9 9 6/9 9
Lifting speed m/min 8 0.8/8 8 0.8/8 7 0.7/7 3.5 0.35/3.5 3.5 0.35/3.5
Trolley travelling speed m/min 20 20 20 20 20
Crane travelling speed m/min 20 20 20 20 20
Rail Model P24 P38 P24 P38 P38 P43 P38 P43 P38 P43
Main dimension (mm) Span(m) 12 16 20 24 12 16 20 24 30 12 16 20 24 30 12 16 20 24 30 12 16 20 24 30
Crane base distance B1 5000/6000 6000/7000 5500/6500 6500/7500 5500/6500 6500/7500 6500/7000 7500/8500 8500 6500/7000 7500/8500
Crane width B2 5400/6400 6500/7500 6000/7000 7100/8100 6000/7100 7100/8100 7000/7500 8200/9200 9200 7000/7500 8200/9200

Services We Offer

Product Inspections

We will provide some free testing and reporting, if you need a third party test report, please inform in advance, and the buyer to pay the relevant costs.


Unless otherwise provided, Our Company will comply only with its minimum packing standards for the method of transportation selected. The cost of all special packing, loading or bracing requested by Buyer will be paid for by Buyer.


We have professional and efficient transport team. Transport to custo-mer specified port and ship on time. Unless otherwise provided, Our Company shall use its judg-ment in determining carrier and routing.


Provide installation files , technical data , videos , drawing etc. Have a professional team of engineers, engineers available to service machinery overseas.

After-sale services

Guarantee the machine could meet production technical standard and performance requirements indi-cated in the contract. Rich spare parts and Professional main-tenance team, technical support team to communicate in time.
