Truss Gantry Cranes

Category: General Purpose Gantry Crane

Application: Trussed type single girder gantry cranes are a kind of outdoor cranes equipped with CD/MD type , low headroom electric hoists and widely used indoor and outdoor such as workshop, warehouse, store yard, railway and so on.

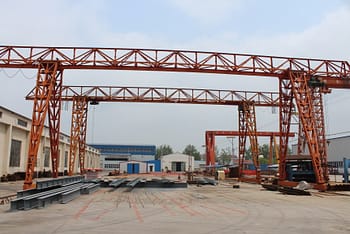

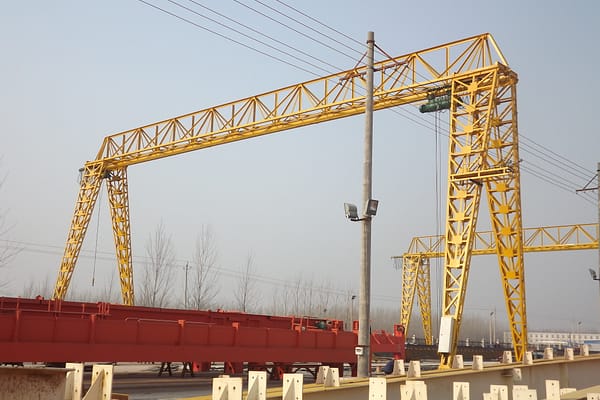

Trussed Type Single Girder Gantry Crane

Product introduction

Trussed type single girder gantry cranes are composed of main beam, support legs, ground beam and crane traveling mechanism. With the advantages of dead weight and strong in wind resistance. The complete machine features light dead weight, simple structure and easy installation and maintenance and widely used.

If you will use it in the environment with inflammable, explosive and corrosive gas, please let me know, we will equip the crane with corresponding measures. There are three control ways for your chosen: ground handle, wireless remote control and cab.

Features

  • Reasonable structure and favorable performance.
  • Smooth starting and stopping.
  • Safe and reliable traveling, long life.
  • Low noise, commodious cabin with good view.
  • Easy installation and convenient maintenance.
  • Excellent exchangeability for parts and components.
  • Crane drive: IP54 or IP44, level F insulation.

Technical Detail

IMG_

Trussed Type Single Girder Gantry Crane

ription

IMG_

Trussed Type Single Girder Gantry Crane

ription

IMG_

Trussed Type Single Girder Gantry Crane

ription

IMG_

Trussed Type Single Girder Gantry Crane

ription

IMG_

Trussed Type Single Girder Gantry Crane

ription

Parameters


CapacityT35101620
Spanm121620241216202430121620243012162024301216202430
Lifting heightm6/96/996/996/996/99
Lifting speedm/min8 0.8/88 0.8/87 0.7/73.5 0.35/3.53.5 0.35/3.5
Trolley travelling speedm/min2020202020
Crane travelling speedm/min2020202020
RailModelP24 P38P24P38P38P43P38P43P38P43
Main dimension (mm)Span(m)121620241216202430121620243012162024301216202430
Crane base distanceB15000/60006000/70005500/65006500/75005500/65006500/75006500/70007500/850085006500/70007500/8500
Crane widthB25400/64006500/75006000/70007100/81006000/71007100/81007000/75008200/920092007000/75008200/9200

Services We Offer

Product Inspections

We will provide some free testing and reporting, if you need a third party test report, please inform in advance, and the buyer to pay the relevant costs.

Packing

Unless otherwise provided, Our Company will comply only with its minimum packing standards for the method of transportation selected. The cost of all special packing, loading or bracing requested by Buyer will be paid for by Buyer.

Transportation

We have professional and efficient transport team. Transport to custo-mer specified port and ship on time. Unless otherwise provided, Our Company shall use its judg-ment in determining carrier and routing.

Installation

Provide installation files , technical data , videos , drawing etc. Have a professional team of engineers, engineers available to service machinery overseas.

After-sale services

Guarantee the machine could meet production technical standard and performance requirements indi-cated in the contract. Rich spare parts and Professional main-tenance team, technical support team to communicate in time.
