Explosion-Proof Electric Hoist

Category: Electric hoist and Trolley

Application: Explosion-proof electric hoist is small-sized lifting equipment, which can be mounted on a single beam, bridge, gantry and Jib cranes, with slight modification, it can also be used as a winch. It is widely used in factories, mines, harbors, warehouses, cargo storage areas, and shops, essential in raising working efficiency and improving working conditions.

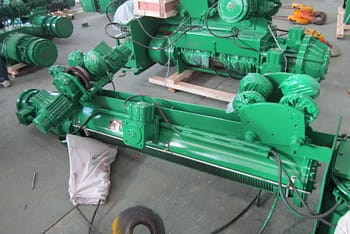

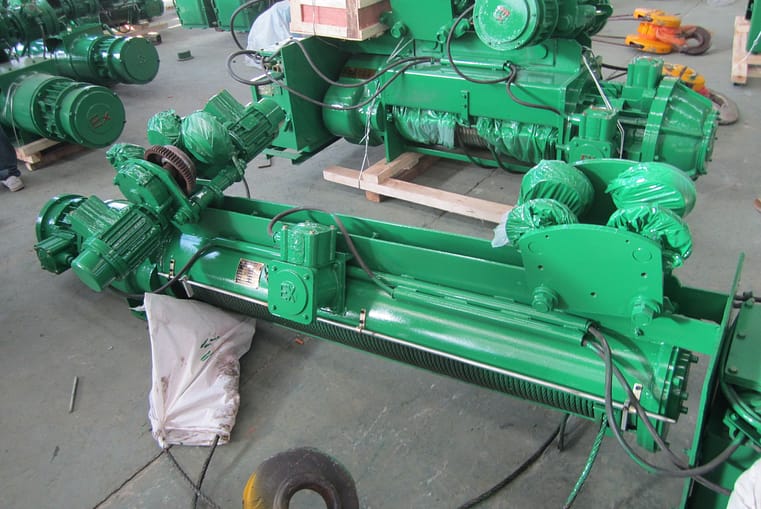

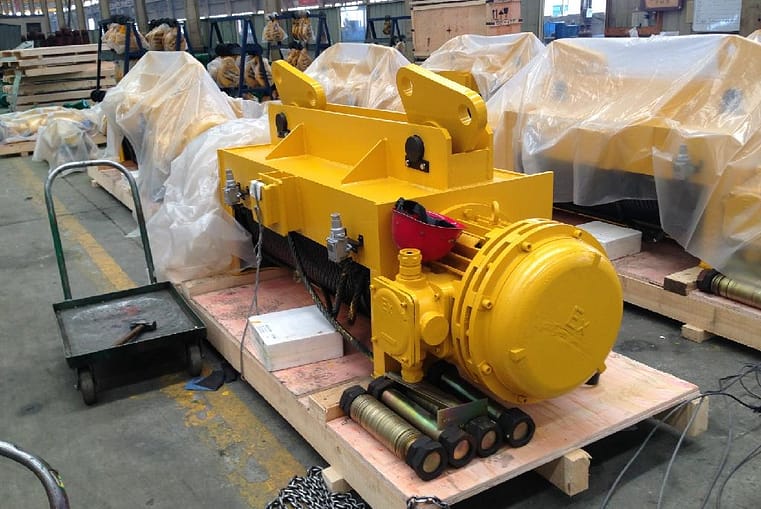

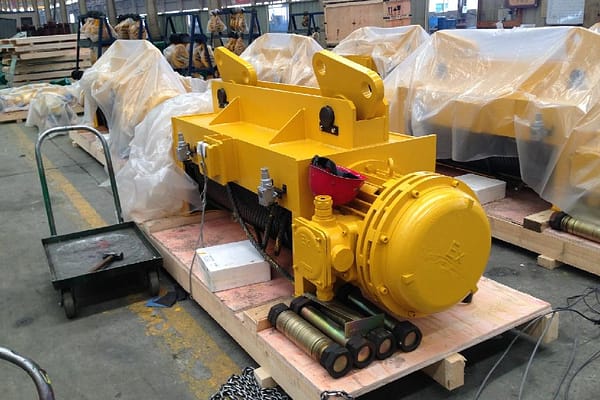

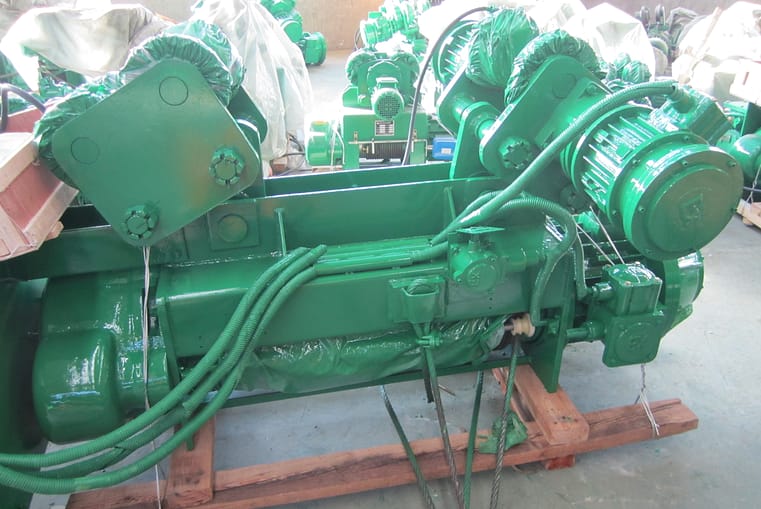

BCD Explosion Proof Electric Hoist

Product introduction

BCD Explosion-Proof Electric Hoist, adapts to the environment in factory that has explosive gas formed by inflammable gas, steam, and air of which explosion proof grade is less than B grade or C grade and ignition group is more than T4(135°C)group, and the explosion-proof electric hoist adapts to 1 area or 2 area.

0 area: Under normal circumstances, the situation that explosive gas mixture appears continuously in a very short time or exist for a long time.

1 area: Under normal circumstances, the situation that explosive gas mixture maybe appear.

2 area: Under normal circumstances, the explosive gas mixture can not appear, but under abnormal circumstances that equipment is out of order or misoperation takes place, the explosive gas mixture appears occasionally in a short time.

It can be installed under workshop fixed to suspend rail to use individually and can be used together with LXB explosion-proof electric hoist double girder crane, LB explosion-proof electric single girder crane and explosion proof electric hoist double girder crane. The capacity is 1t~32t, working environment temperature is -25°C~40°C.

Features

  • .Reducer: As an independent part, loading and unloading conveniently.3 Lever Fixed Bearing Helicopter Gear transmission mechanism, gear and gear shaft made of alloy steel with heat treatment. The box cover is made of high-quality iron, assembly well, sealed well.
  • Control Box: Fire Stop Device which can cut off the circuit in case of emergency to protect operation safety.
  • Wire: Adapt GB1102-74(6×37+) standard load wire, ensure electric hoist durable using.
  • Cone-shaped motor: Lifting motor is higher starting torque tapered brake rotor asynchronous motor, need no extra brake. Insulation is B grade or F grade, Motor Protection Grade is IP44/IP54.
  • Button switch: Handle control: light and convenient, offer two kinds: ring control and wireless remote control.

Technical Detail

Button switch

Button switch

ription

Cone shaped motor

Cone-shaped motor

ription

Control box

Control box

ription

Wire

Wire

ription

Parameters


Capacity(t)0.512351016
Hoisting(m)69126912182430691218243069121824306912182430912182430912182430
Hoisting speed(m/min)8(0.8/8)7(0.7/7)3.5(0.35/3.5)
Travel speed(m/min)20/3018
Steel wireDia(mm)4.87.411131517.5
Specification6*37
Track16-28b20a-32c32b-45a32b-45a32b-63c
Min curvature radius(m)1.51.523422.53422.5342.5344.563.5467.593.546811
Hoisting motorTypeBZD121-4BZD122-4BZD131-4BZD132-4BZD141-4BZD151-4
BZDS10.2/0.8BZDS10.2/1.5BZDS10.4/3.0BZDS10.4/4.5BZDS10.8/7.5BZDS11.5/13
Power(kw)0.8(0.2/0.8)1.5(0.2/1.5)3.0(0.4/3.0)4.5(0.4/4.5)7.5(0.8/7.5)13(1.5/13)
Rotation speed(r/min)1400
Current(A)2.4(0.72/2.4)4.3(0.72/4.3)7.6(1.25/7.0)11(1.25/11)18(2.4/18)30(5.2/30)
Travel motorTypeBZDY11-4BZDY12-4BZDY21-4
Power(kw)0.20.40.8
Rotation speed(r/min)138013801380
Current(A)0.721.252.4
No.of connecting120
Working systemIntermediate FC=25%
Power sourceAC 3Ph 380V~480V 50/60HZ
