Low Headroom Electric Hoist

Category: Electric hoist and Trolley

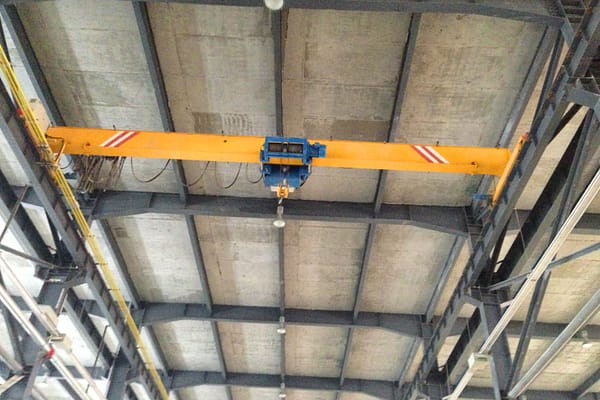

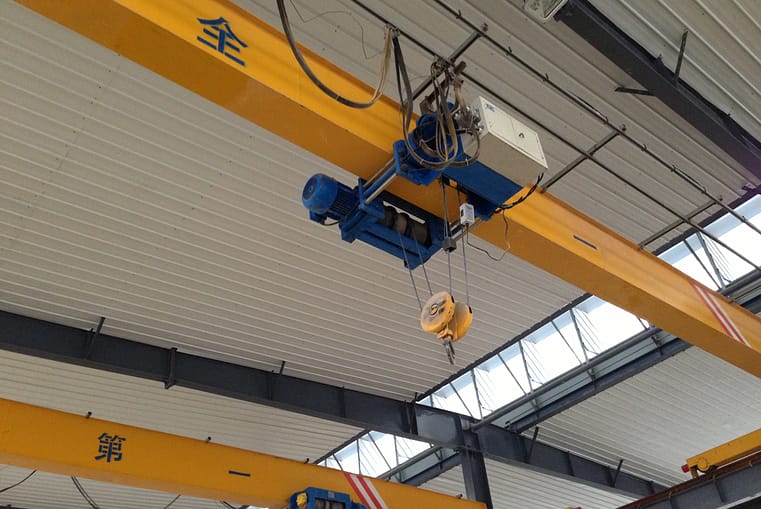

Application: For machining, assembly, warehousing, and other materials transfer site, esp. for restricted height plant sites widely used to hoist heavy objects, or installed on the straight or curve I-steel beam of Single-girder Cranes.

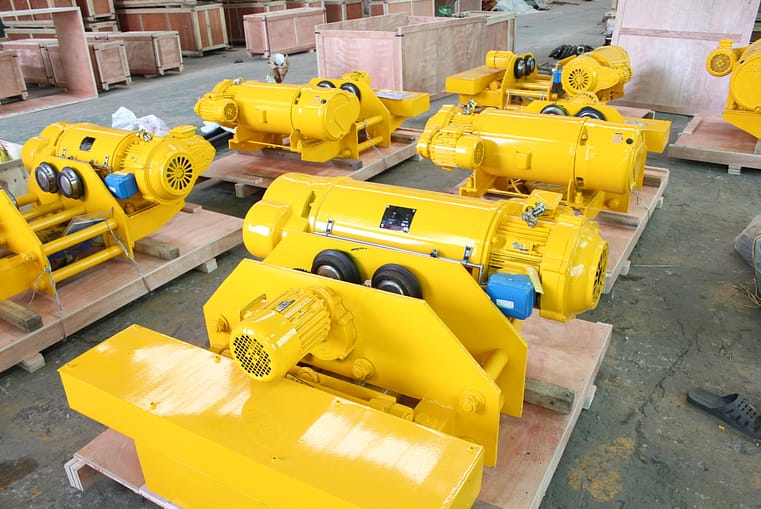

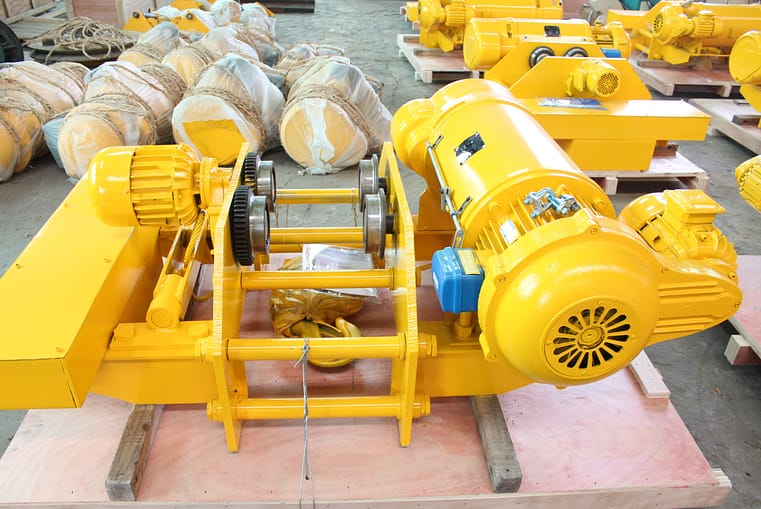

NH Model Wire Rope Electric Hoist

Product introduction

NH Electric Hoist improved from CD and MD type electric hoist, the working conditions are same as CD and MD type wire rope electric hoist, it increases more lifting room and can save construction cost of the workshop. Using NF series helical gear reducer drive, the drive wheel on both sides transmission torque via a six-rowed steel, with large transmission torque, high reliability, to avoid the situation of the flat key shear failure, also very beneficial to Installation and regulation for running parts.

Features

  • No out-leakage cable for hoist body, all cables through various means are arranged inside, make better appearance; such as: supporting shaft is hollow thick-walled pipe to reduce the hoist overall weight & also reach the crossing of the left and right portions cable under the condition of ensuring the use strength.
  • Compact structure, box weight, users can add various steel scrap or stone, etc., saving the steel, while it will reduce more dimensions than counterweight hoist.
  • Drive wheel on both sides transmission torque via a hexagonal steel torque, higher reliability, to avoid the situation of the flat key shear failure, and this drive is also very beneficial to installation and regulation for running parts.
  • Lifting host portion cover is rectangular welded structure, surrounded by the mounting bolt holes, more highly versatile, can be quickly transformed into fixed or suspended traveling electric hoist, with 360 ° steel wire direction.
  • For the entire structure, easy removal, installation, easy maintenance and good maintainability.

Parameters


Capacity
(kg)
Working group Power rate Rope reeving Travel speed
m/min
Lift speed
m/min
H (min) Dimension Lifting height(m)
6 9 12 18
3 M3 5 4/2 20 12 550 L 900 1120 1240 1360
A1 425
A2 425
C 100~400
5 M4 5 4/1 6 20 550 L 900 1120 1240 1360
A1 425
A2 425
C 100~400
5 M4 5 4/2 12 20 650 L 1080 1300 1520
A1 553
A2 425
C 130~500
10 M4 11 4/1 6 20 650 L 1080 1300 1520
A1 553
A2 425
C 130~500

Services We Offer

Product Inspections

We will provide some free testing and reporting, if you need a third party test report, please inform in advance, and the buyer to pay the relevant costs.

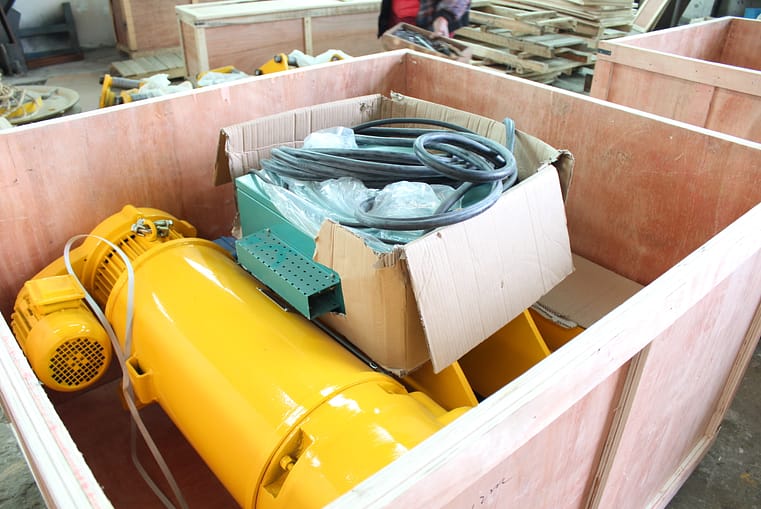

Packing

Unless otherwise provided, Our Company will comply only with its minimum packing standards for the method of transportation selected. The cost of all special packing, loading or bracing requested by Buyer will be paid for by Buyer.

Transportation

We have professional and efficient transport team. Transport to custo-mer specified port and ship on time. Unless otherwise provided, Our Company shall use its judg-ment in determining carrier and routing.

Installation

Provide installation files , technical data , videos , drawing etc. Have a professional team of engineers, engineers available to service machinery overseas.

After-sale services

Guarantee the machine could meet production technical standard and performance requirements indi-cated in the contract. Rich spare parts and Professional main-tenance team, technical support team to communicate in time.
