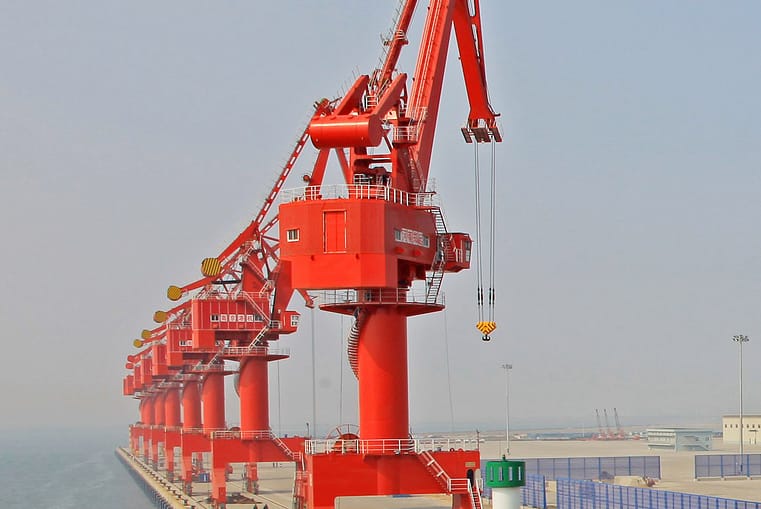

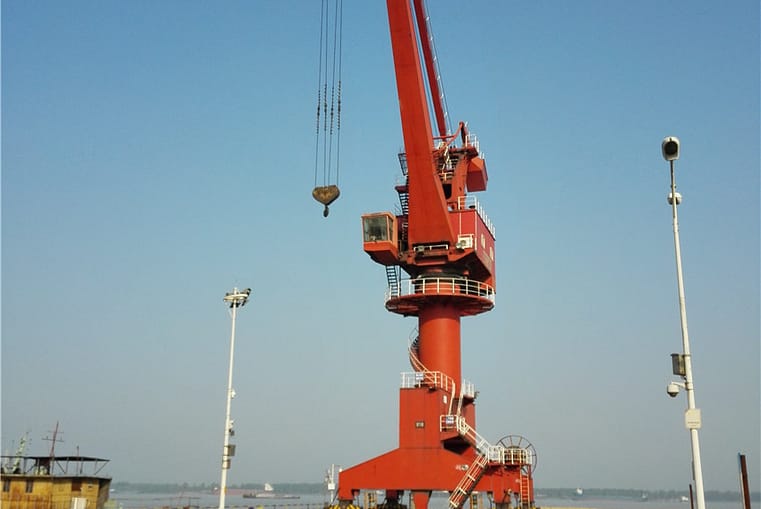

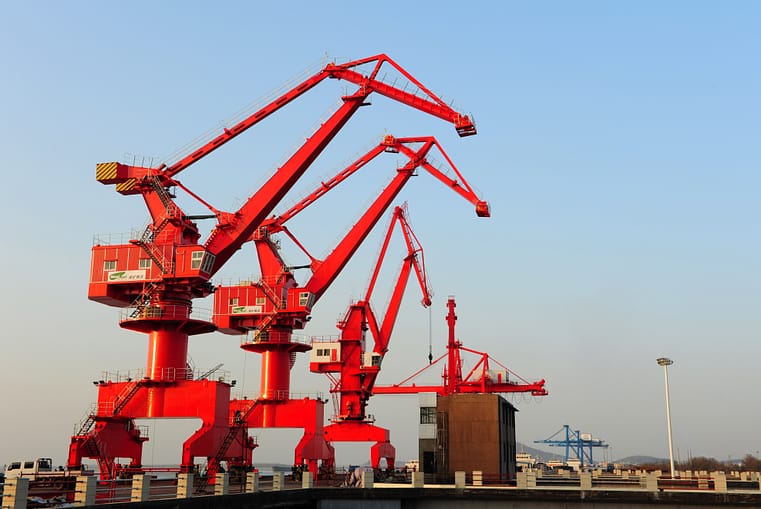

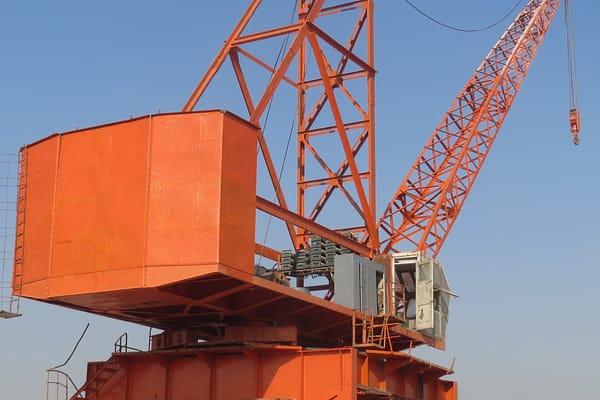

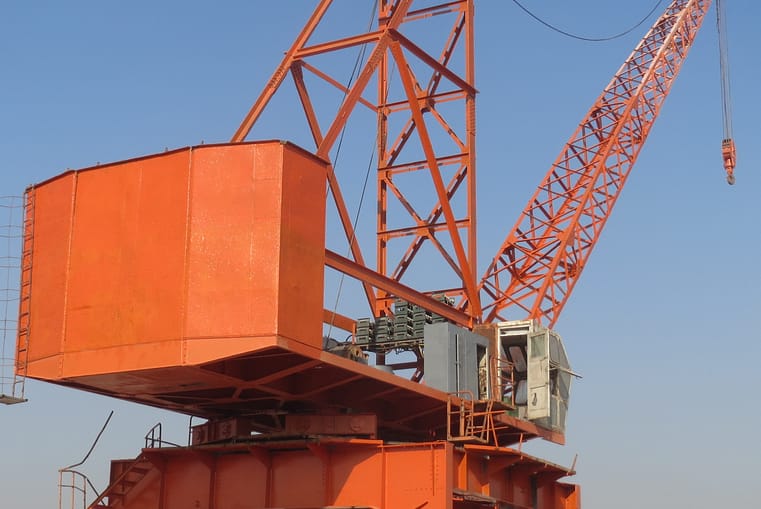

Portal Slewing Crane

Category: Port and container handling crane

Application: Portal slewing cranes are widely used in ports, dock cargo handling, construction and installation of shipyards and construction of large hydropower projects.

Portal Slewing Crane

Product introduction

Portal slewing crane is typical arm slewing crane with traveling rails and used in portal slewing crane base frame, equipped with a rotation mechanism, the portal frame is actually the load-bearing part. Under the portal frame, it's traveling mechanism, can walk on the ground rail. On top of the rotating mechanism are the arm frame and luffing mechanism. Four mechanisms work together to complete the installation of equipment or hull section or to load and unload cargo.

Features

  • The working mechanism has a higher traveling speed, which can reach 70m/min, luffing speed up to 55m/min.
  • Rated lifting capacity is wide. In general, it's 5-100ton,the lifting capacity for shipbuilding use portal slewing crane is larger,its up to 150~250ton.
  • High efficiency. 22 hours per day and night work. In general, it can reach more than 100 tons per hour.
  • Three-dimensional structure. Not take up more docks, freight yard area, with a tall gantry frame and the long boom, thus it has large hoisting height and working range, to meet the port terminal ships and vehicles mechanized handling, reprinting and full use of the site request.
  • High cost. Need more steels and larger power supply, the wheel pressure is large require a solid foundation, its ancillary equipment is also more, such as substations, cables etc.

Parameters


Technical parameter
Product specification 1030 1633
Lifting capacity t 10 Grab 16 Hook 25
Duty group A7 A7
Lifting height Over rail m Grab 16 hooks 25 Grab 20 Hook 28
Under rail m Hook 15 16
Working radius Max m 30 Grab 33 Hook 23
Min m 8.5 9.5
Lifting mechanism Duty group M7 M7
Lifting speed m/min 60 50
Luffer mechanism Duty group M6 M6
Luffing speed m/min 52 50
Swing mechanism Duty group M6 M6
Rotate speed m/min 1.51 1.51
Traveling mechanism Duty group M4 M4
Traveling speed m/min 27 25
Power source 380V 50Hz
Track gauge/base spur m 10.5 10.5
Maximum turning radius m 30 33
Tail turning radius m ~7.8 ~8.5
Maximum wind pressure at work N/m 250 250
Maximum wind pressure nonworking N/m 1000 1000
Max wheel pressure at work KN 220 250
Rec rail model P50 P50
Installed capacity kW 350 450
