Wire Rope Drum

Category: Crane Spare Parts

Application: The drum is widely used in a variety of lifting equipment: single girder cranes, double girder cranes, gantry cranes, port cranes, ship winches, winches, beam machines, three-dimensional garage, all terrain cranes and other lifting equipment.

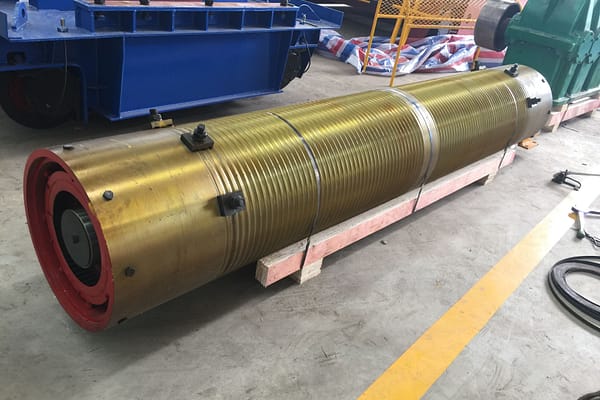

QQ图片

Product introduction

As one of the most important accessories for hoisting equipment, wire rope drum plays a crucial role in lifting equipment. It is responsible for winding wire rope, bearing the lifting of heavy lifting force and pressure, in conjunction with other relevant lifting agencies to achieve heavy lifting and handling. It consists of drum and drum shaft, flange type ring gear, drum hub, bearings and bearing housings.

Features

  • Material: Q235 ,Q345 ,45#;
  • Heat treatment: hardening and tempering, high-frequency quenching, carburizing quenching and so on;
  • Groove surface quench: HRC45-55;
  • Groove surface quench depth: ≥2mm;
  • Max processing diameter: 2,000mm;
  • Inspection: all items are checked and tested thoroughly during every working procedure and after the product is finally manufactured to ensure that best quality product goes out on the market.

Technical Detail

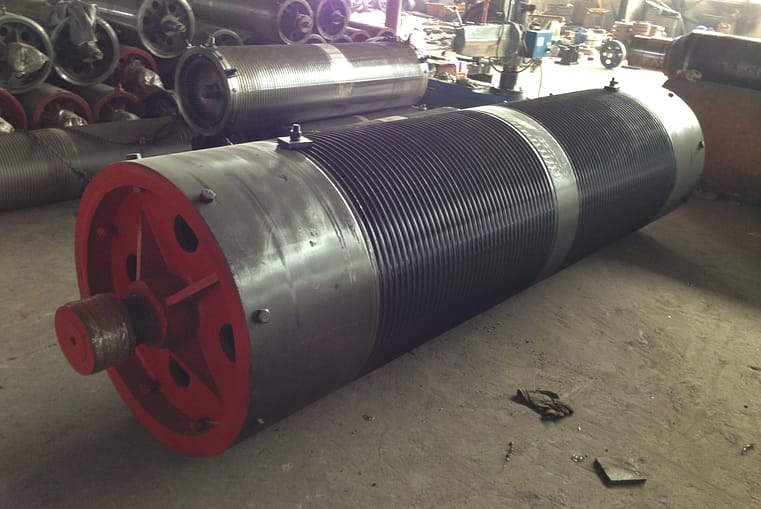

Wire Rope Drum

Wire Rope Drum

ription

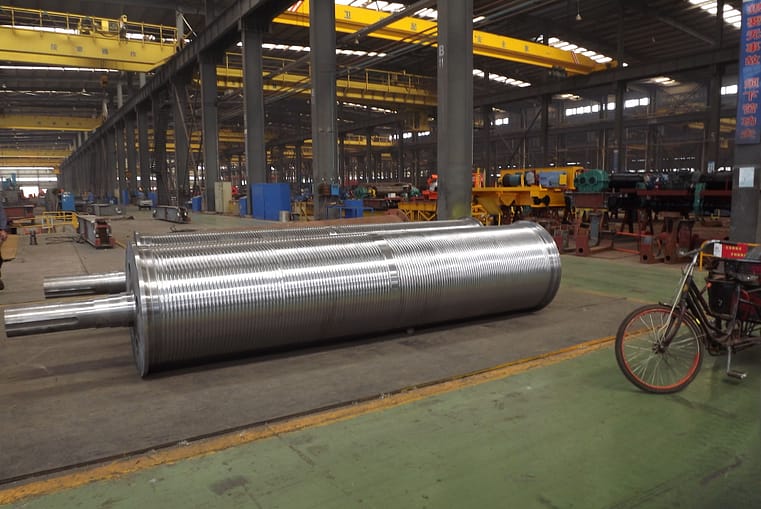

Wire Rope Drum

Wire Rope Drum

ription

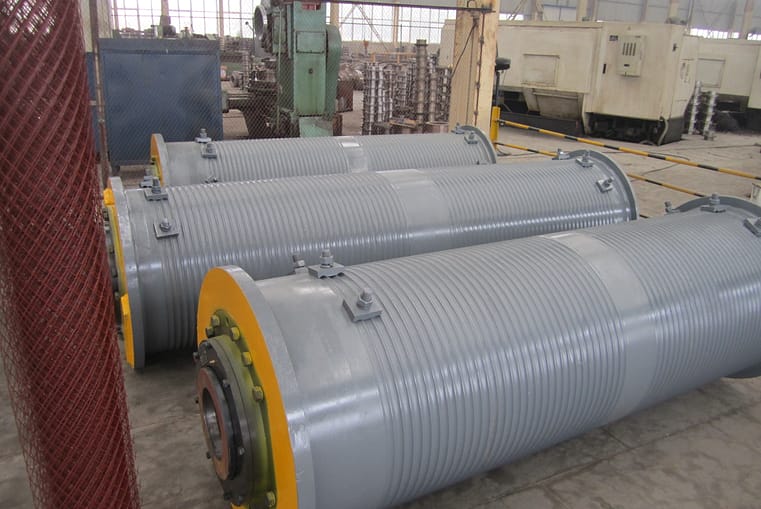

Wire Rope Drum

Wire Rope Drum

ription

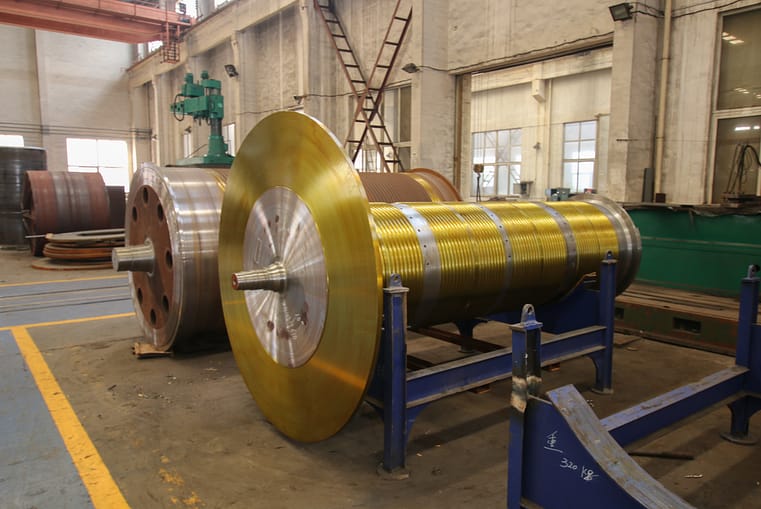

Wire Rope Drum

Wire Rope Drum

ription

Wire Rope Drum

Wire Rope Drum

ription

Wire Rope Drum

Wire Rope Drum

ription

Parameters


NO.SpecificationLifting capacity(t)pulley ratioscrew pitchlifting height(m)weight(kg)
1Φ300×10003.221412264
2Φ300×15003.221418342
3Φ400×1000521616334
4Φ400×15001031616454
5Φ500×15001632016753
6Φ500×15002042012753
7Φ650×200032424161500
8Φ800×200050528122534
9Φ800×400075532203390
10Φ1000×4000100636206070
