Move Girder Cranes

Category: Road And Bridge Crane

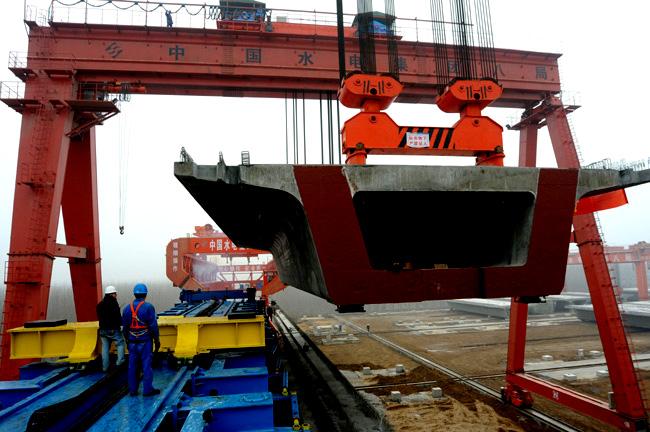

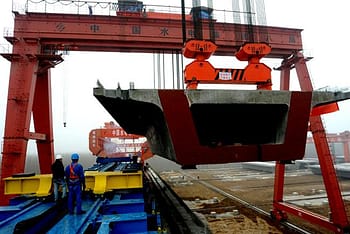

Application: Move girder cranes are specially designed for railway passenger dedicated line construction and used to produce a beam, carry beam, launch beam in the railway passenger dedicated line construction; it can use two set 500t(450t) to lift beam and also can use one set 1000t(900t) setting up two lifting points for lifting beam.

Move Girder Crane

Product introduction

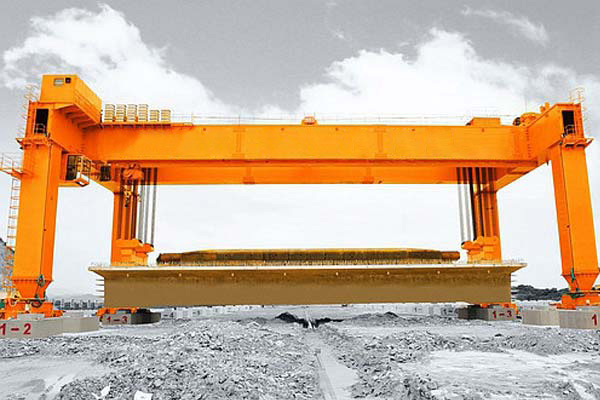

Move girder cranes mainly consist of the main girder, rigid leg, flexible leg, crane traveling mechanism, lifting mechanism, electrical control system, hydraulic system, cabin, handrail, ladder, and platform, etc.

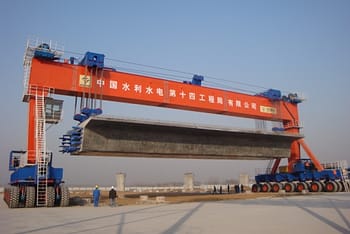

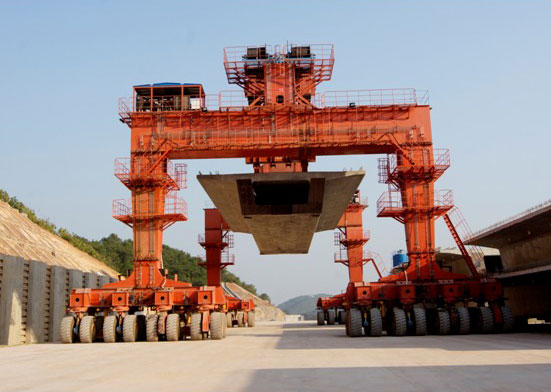

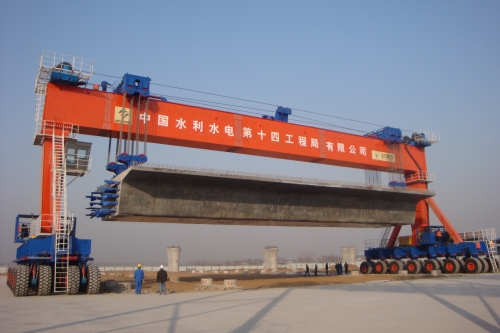

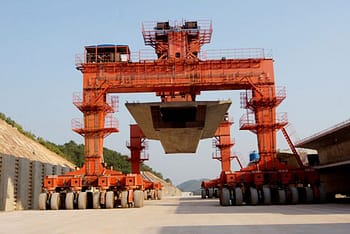

Move girder cranes adopt tire line technology to finish handling all beams in the preset field and can realize many walk line models, such as straight, oblique and crosswise. Its advantage is strong adaptability, high efficiency, small occupied area and no need to lay the rail. In the construction of the high-speed railway in China, this kind crane is used to lift, handle and load the beam by most preset field.

Move girder cranes, used to lift, handle, load beam in the preset field when the high-speed railway weight is below 1000t. It adopts tired rail model running model and with power generating set to provide power. It can travel along the laid rail and its running mechanism can rotate 90 degrees to realize straight travel and crosswise to finish handling all beams in the preset field.


  • Rubber tire type and rail-mounted type;
  • Hydraulic drove by walking, steering, and lifting;
  • Walk straight, oblique and rampage;
  • Good adaptability, high working efficiency, small space occupied;
  • Special spreader mainly used for lifting and transporting large concrete beam/bridge;
  • 2 cranes, 2 trolleys with max lifting height 30m;
  • The max wheel load is 22t when lifting 900t stuff;
  • 90° shift for rail type crane to achieve horizontal or vertical walking;
  • 4 points for lifting and 3 points for balance to ensure even stress of the steel wire rope;
  • Accurate positioning for stuff lifting down;
  • Hydraulic push for trolley to realize various lifting and save the cost;
  • For the 4 hoists, it can be single use or combine the use of 2 or 4 hoists while the hardware and software are interlocked for operator safety.


Lifting Capacity Single t 450 (without spreader) 900 (without spreader)
Double t 450+450
Span m 38 38.5
Lifting Height m 30 12
Tracks Center Distance m 1,500 1,200
Speed Hoisting m/min 0.05 ~ 0.5 ~ 1 (no load) 0.05 ~ 0.5 ~ 1 (no load)
Trolley 0.2 ~ 2 ~ 4 (no load) Hydraulic push rod
Crane 0.5 ~ 5 ~ 10 (no load) 1 ~ 10 ~ 12 (no load)
Electric Hoist Model CD1 16-30D WH164 20T-12D
Lifting Capacity t 16 20
Lifting Speed m/min 3.5 3.3
Traveling Speed 20 14
Lifting Height m 28.5 12
Work Duty A3 A3
Steel Track Recommended P50, P60 P50, P60
Max. Wheel Load KN 360 225
Work Duty A5 A3
Total Weight t 410 505
Total Power KW 175 259
Power Source 3P, AC, 50Hz, 380V 3P, AC, 50Hz, 380V

Services We Offer

Product Inspections

We will provide some free testing and reporting, if you need a third party test report, please inform in advance, and the buyer to pay the relevant costs.


Unless otherwise provided, Our Company will comply only with its minimum packing standards for the method of transportation selected. The cost of all special packing, loading or bracing requested by Buyer will be paid for by Buyer.


We have professional and efficient transport team. Transport to custo-mer specified port and ship on time. Unless otherwise provided, Our Company shall use its judg-ment in determining carrier and routing.


Provide installation files , technical data , videos , drawing etc. Have a professional team of engineers, engineers available to service machinery overseas.

After-sale services

Guarantee the machine could meet production technical standard and performance requirements indi-cated in the contract. Rich spare parts and Professional main-tenance team, technical support team to communicate in time.
