Gantry Crane for Shield Tunneling Machines

Category: Road And Bridge Crane

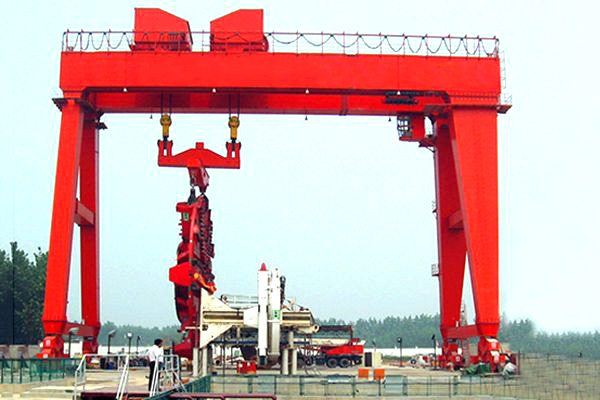

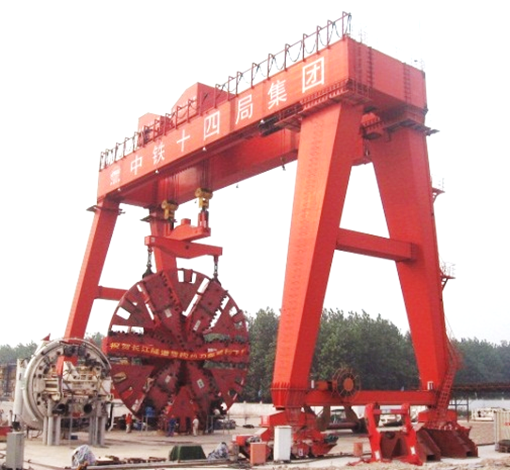

Application: Shield gantry cranes (abbreviated DMG) are mainly used for installation of underground trenchless device TBM cutter head shield and body, as well as the construction process of tunnel support tube sheet lifting.

Gantry Crane for Shield Tunneling Machines

Product introduction

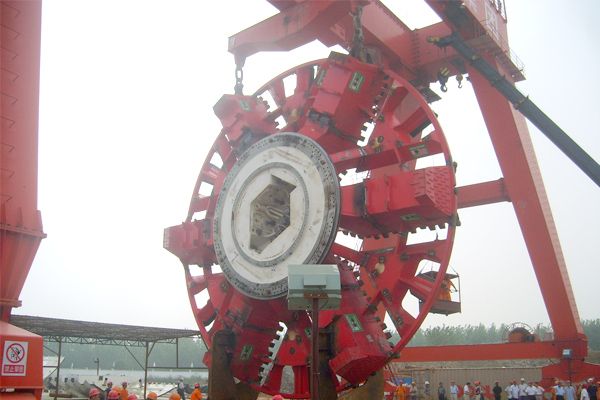

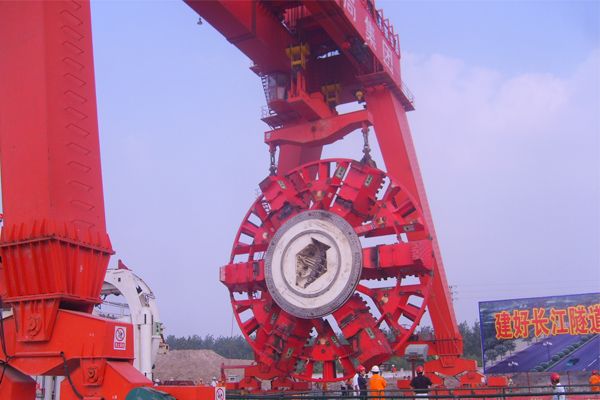

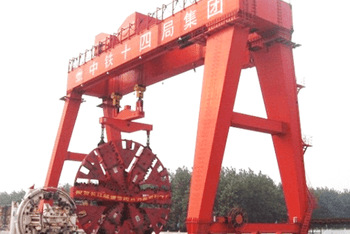

Shield gantry cranes are used for lifting of the cutter and shield body of underground excavation shield tunneling machine and the tunnel support segment in the process of the construction.  The trolley of this gantry crane is a rotating disc adapts to the demand of different digging direction with the flexible operation, perfect safety instructions and overload protection device system.

Shield gantry cranes have the advantage of the stable performance , high production efficiency, used for maintenance, the upper slewing can sling to meet the needs of different digging directions, flexible operation mode, with improved safety instructions and overload protection device, to ensure maximum safety of operating personnel and equipment, the electrical system uses PLC frequency adjustment, helps to control agencies, DMG design, manufacture, inspection run the latest release of national standards.


  • Adopt sling, it can 360 degrees rotate, suitable for cutting wheels installation at different angles.
  • Adopt double trolley structure, the two trolley can linkage, lift the knife dish, also can lift pipe piece separately.
  • The lifting mechanism is open type gear transmission, cost savings.


Rated load(under spreader) t 100 130
Span m 20 22 24 20 22 24
Lifting height m 9800+30000 9800+30000
Working duty A4 A4
Speed Main m/min 0.37~3.7~6 0.37~3.7~6
Crab traveling 2.5~25 2.5~25
trolley traveling 1.4~14 1.4~14
Limit dimension L1 mm 1270 1250
L2 1270 1250
L 3000 3000
C1 1750 1750
C2 1900 1900
Main dimension H mm 16240 15920
H1 9800 9800
H2 30000 30000
H3 660 660
B 16380 16180
