Magnetic Overhead Crane

Category: General Overhead Crane

Application: QC Electromagnetic Overhead Crane is especially suitable for the frequent loading and hailing working for magnetic black metal products and materials (e.g., steel ingot, steel, pig iron block) within the fixed span room in metallurgy factories, indoors or outdoors. Besides, it could also be used to carry the steel materials, iron, scrap iron, scrap steel, and scrap iron and other materials in machine factory or warehouses.

This crane working duty is A6.

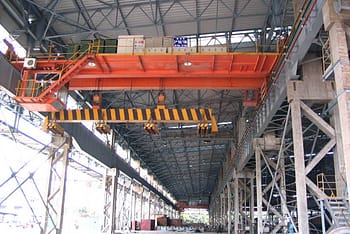

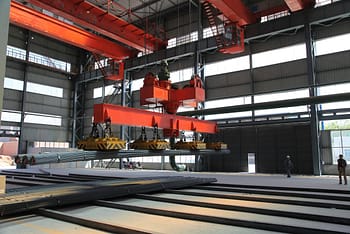

QC Model Magnetic Double Girder Overhead Crane

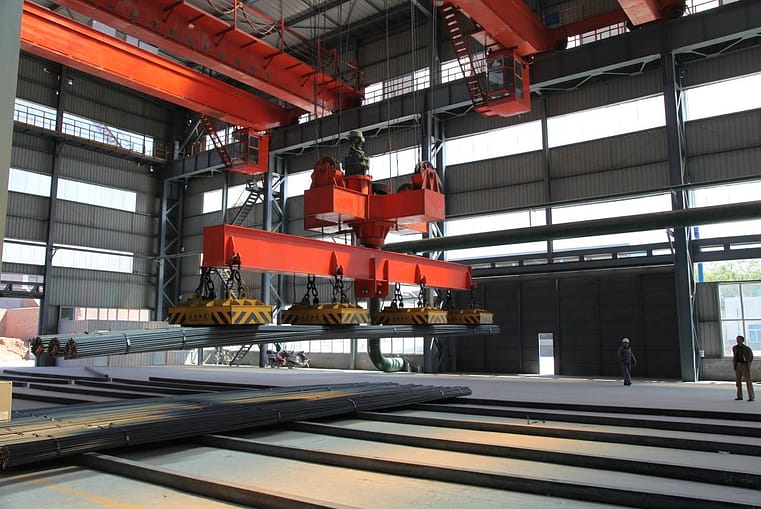

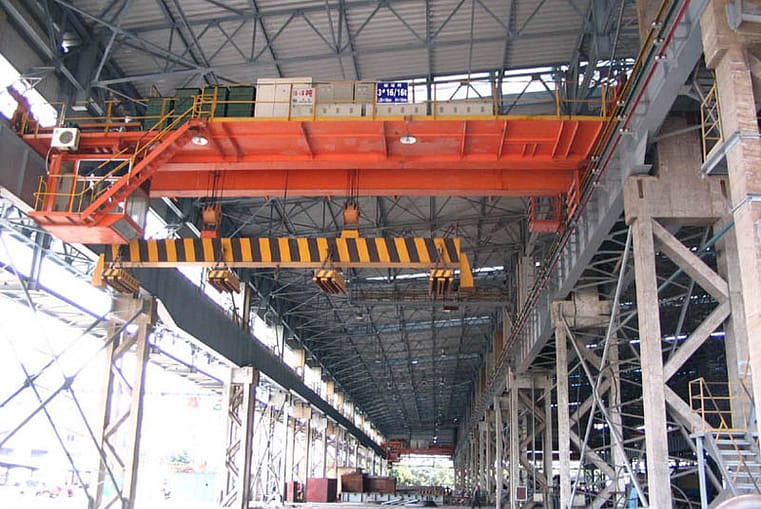

Product introduction

QC Electromagnetic overhead crane is a kind of material handling equipment, equipped with detachable electromagnetic chuck and corresponding operating system to handle and lift metal objects. The lifting capacity of the electromagnetic overhead crane included the weight of electromagnetic is 5 to 50 ton. The rated lifting weight including the magnetic chuck set weight. The working class of electromagnetic crane is A5 and A6. The magnetic retentive time is 10 to 30 minutes.

QC overhead Crane is equipped with detachable electromagnetic chuck so it is especially suitable for the frequent loading and hailing working for magnetic black metal products and materials (e.g., steel ingot, steel, pig iron block) within the fixed span room in metallurgy factories, indoors or outdoors.

Besides, it could also be used to carry the steel materials, iron, scrap iron, scrap steel, and scrap iron and other materials in machine factory or warehouses. The platform to the cab could be side access, end access or top access the rotating parts of the hook must be locked tightly with the screws to avoid the rotation when the electric disk is operating. The lifting capacity marked includes the deadweight of the electromagnetic chuck. The weight of the whole crane excludes that of the electromagnetic chuck and its accessories.

Features

  • On material: All compression structural part of crane's components is made of high-quality materials confirming with the regulations and standards, whose inspection report can be provided when required.
  • On welding: The welding of steel structures will be strictly checked and inspected by a specialist and the inspection reports also can be provided on the requirement.

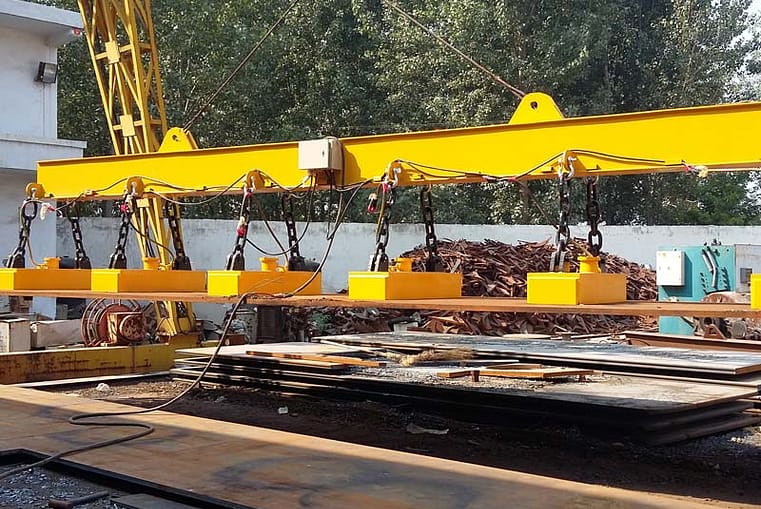

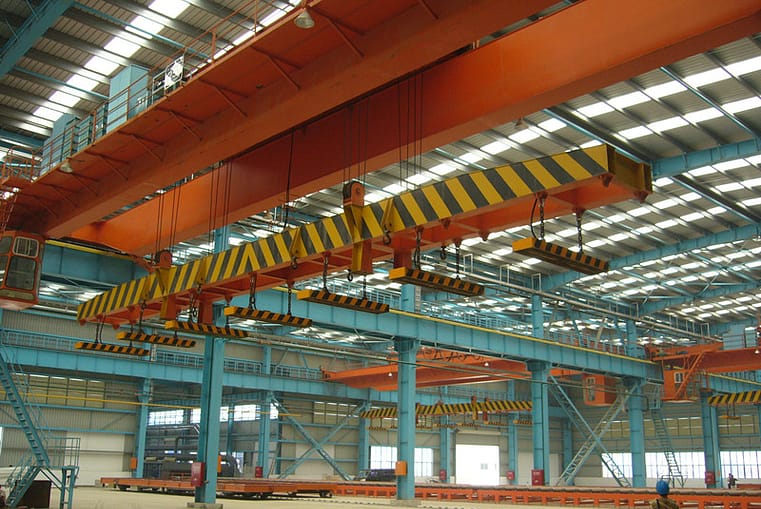

  • On magnetic chuck: The magnetic chuck has a huge magnetic force which can be used to lift and transport a wide range of metal products and can handle a large volume of metals at a time.
  • On motor: Top brand motors are installed with good performance and with Class F insulation and IP54 protective class.
  • On electric system: PLC control to all the mechanism and any speed requirement can be achieved.
  • On control system: Cabin with joystick panel, wireless control, and pendant control can be your choices.
  • On painting: 3 layers of painting is painted to protect the steel from rusting.
  • On safety: Various protection measures are taken to ensure the safety of crane and operation. Overload limit, height limit, rail end stop limit for traveling are used to protect the mechanical system and short circuit protection, lose phase protection, low-voltage protection, power failure protection, over current protection are used to protect the electric system.

Technical Detail

Crane traveling mechanism

Crane traveling mechanism

ription

Beam processing

Beam processing

ription

Cable Line Storage

Cable Line Storage

ription

Electromagnetic Lift

Electromagnetic Lift

ription

End girders welding

End girders welding

ription

Electric Assembly Area 副本

Electric Assembly Area

ription

Main beam welding

Main beam welding

ription

Double spout gantry automatic welding machine

Beam processing

ription

Parameters


Technical Parameter of QC Electromagnetic Overhead Crane
Capacity t 5 10 16 20 32 50
Span S(m) 10.5~31.5
Lifting height m 6~18
Lifting speed m/min 15.5 13.3 13 9.7 9.5 7.8
Trolley speed m/min 37.2 45.9 44.6 44.6 42.4 38.5
Crane speed m/min 115.6 115.6 112.5 112.5 101.4 86.8
Work duty A5~A6 A5~A6 A5~A6 A5~A6 A5~A6 A5~A6
Track type P43 P43 P43 or QU70 P43 or QU70 QU70 or 90*90 QU80 or 100*100

Services We Offer

Product Inspections

We will provide some free testing and reporting, if you need a third party test report, please inform in advance, and the buyer to pay the relevant costs.

Packing

Unless otherwise provided, Our Company will comply only with its minimum packing standards for the method of transportation selected. The cost of all special packing, loading or bracing requested by Buyer will be paid for by Buyer.

Transportation

We have professional and efficient transport team. Transport to custo-mer specified port and ship on time. Unless otherwise provided, Our Company shall use its judg-ment in determining carrier and routing.

Installation

Provide installation files , technical data , videos , drawing etc. Have a professional team of engineers, engineers available to service machinery overseas.

After-sale services

Guarantee the machine could meet production technical standard and performance requirements indi-cated in the contract. Rich spare parts and Professional main-tenance team, technical support team to communicate in time.
