Top Running Overhead Crane

Category: General Overhead Crane

Application: LDA model overhead crane is a kind of light duty single girder overhead crane, it is widely used in plants, warehouse, and material stocks to lift goods. It is prohibited to use the equipment in the combustible, explosive or corrosives environment.

It is matched with electric hoist which is CD model or MD model.

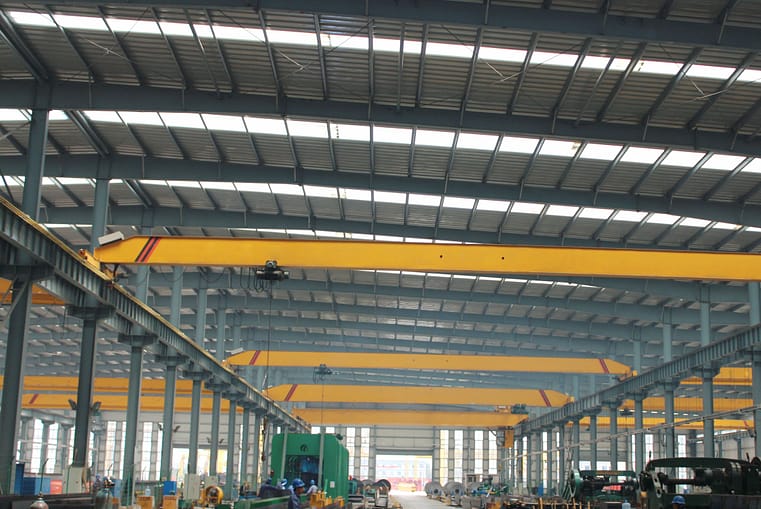

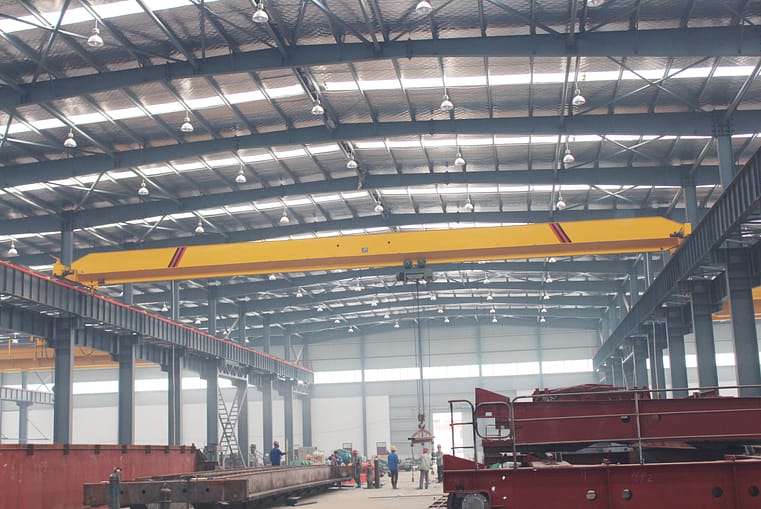

Top Running Single Girder Overhead Crane

Product introduction

LDA model single girder overhead crane is characterized by more reasonable structure, strong rigidity and higher strength steel as a whole.Used together with CD, model MD model electric hoist as a complete set, it is a kind of light duty crane, with the capacity of 1 to 20 tons. The span is 7.5to 31.5 meters. Working duty is A3. Working temperature is -25°C to 40°C.

All of our single beam bridge crane 2 ton has been tested strictly just below:

  • In the static state, we will do a static testing, the weights are Crane Rated Capacity*1.25;
  • In the dynamic state, we will do a dynamic load test, the weight is Crane Rated Capacity*1.1.

Features

  • Our quality can stand the test;
  • Good material: Strong and durable;
  • Good quality: do not wear, do not drop paint;
  • No deformation: Durable without deformation;
  • Good raw material: high quality steel plate;
  • Low price: Factory direct sale;
  • Compact design: Lightweight structure and good performance, effectively improve the space utilization;
  • Fast and smooth loading: The utility model has the advantages of stable running and quick positioning, and effectively solves the swing of the load;
  • Better performance: First production technology, professional and technical personnel, to create better quality products;
  • Safer and more reliable: The perfect braking system improves the safety and reliability, and the safe service life is more than 1 million times.

Technical Detail

Crane Rails

Crane Rails

ription

Power Supply for Cranes

Power Supply for Cranes

ription

End Girders

End Girders

ription

Schneider Electrics

Schneider Electrics

ription

Main Single Girder

Main Single Girder

ription

Electric Hoist

Electric Hoist

ription

Parameters


Lifting capacity (T)1,2,3,5,10T16,20T
Span(M)7.5-31.5M
Overhead Crane travelling mechanismTravelling speed(m/min)20304560752030456075
Reducer ratio58.7839.3826.3619.3715.8858.7839.3826.3619.3715.88
MotorModelZDY21-4ZDY21-4ZDY122-4ZDY131S-4ZDY112L1-4
Power(kw)2*0.82*1.51.5*22.2*22.2*2
Rotation (m/min)13801380
Lifting mechanism (electric hoist)&electric hoist
travelling mechanism
Electric hoist modelCD1/MD1MD1/HC
Lifting speed (m/min)8,8/0.8 7,7/0.73.5 3.5/0.35
Lifting height (m)6 ,9 ,12, 18, 24, 3012,18,24,30
Travelling speed (m/min)20(30)20(30)
MotorTaper Squirrel-cage typeTaper Squirrel-cage type
Work dutyA3-A5
Power supply380V 50HZ three phase or according to your requirements
Wheel diameter270mm370mm
Width of trail37-70mm37-70mm

Services We Offer

Product Inspections

We will provide some free testing and reporting, if you need a third party test report, please inform in advance, and the buyer to pay the relevant costs.

Packing

Unless otherwise provided, Our Company will comply only with its minimum packing standards for the method of transportation selected. The cost of all special packing, loading or bracing requested by Buyer will be paid for by Buyer.

Transportation

We have professional and efficient transport team. Transport to custo-mer specified port and ship on time. Unless otherwise provided, Our Company shall use its judg-ment in determining carrier and routing.

Installation

Provide installation files , technical data , videos , drawing etc. Have a professional team of engineers, engineers available to service machinery overseas.

After-sale services

Guarantee the machine could meet production technical standard and performance requirements indi-cated in the contract. Rich spare parts and Professional main-tenance team, technical support team to communicate in time.
